2009-2024 Harley-Davidson Touring Series (Custom Bagger) Smooth Ride Kit (Black)
Write a review
PRODUCT FEATURES

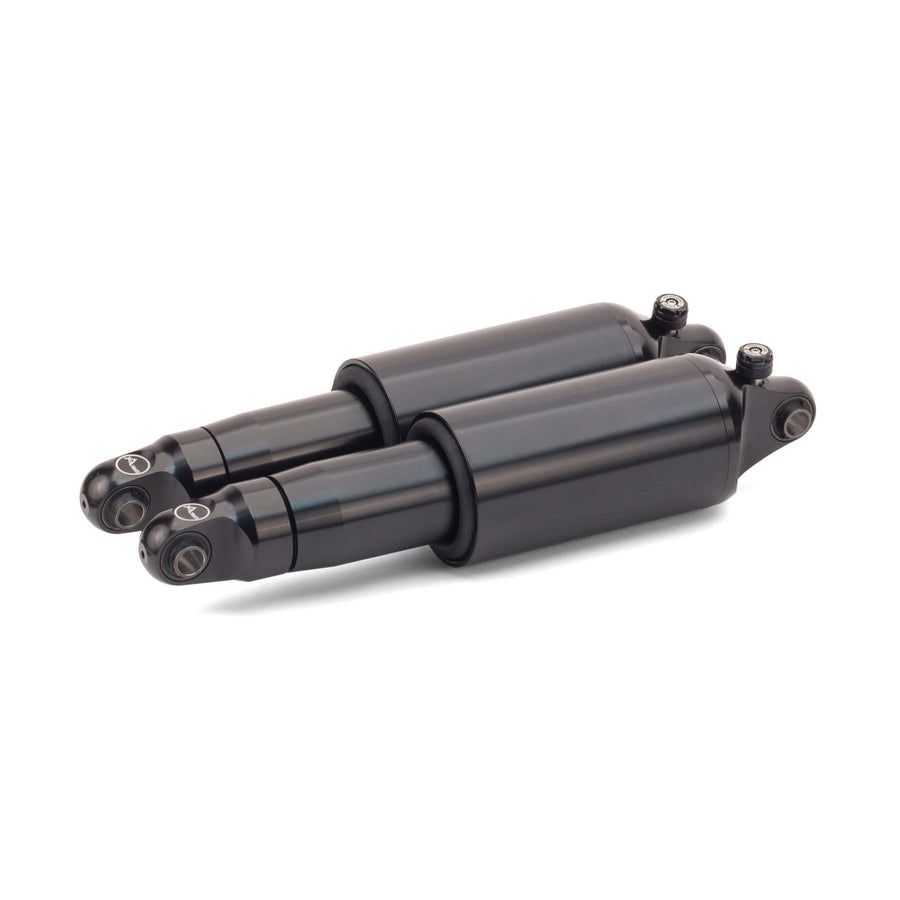

- 2 x 14" black monotube shock absorbers
- Goodyear® air spring sleeves Protected by aluminum covers
- ViAIR high output compressor w/application-specific bracket
- Aircraft quality billet aluminum construction
- Micro-toggle inflation switch
- Detailed installation manual
- Limited Lifetime Warranty
- Made & tested in USA
- 3.98-inch travel: 14-inch extended, 10.02-inch collapsed
INCLUDES

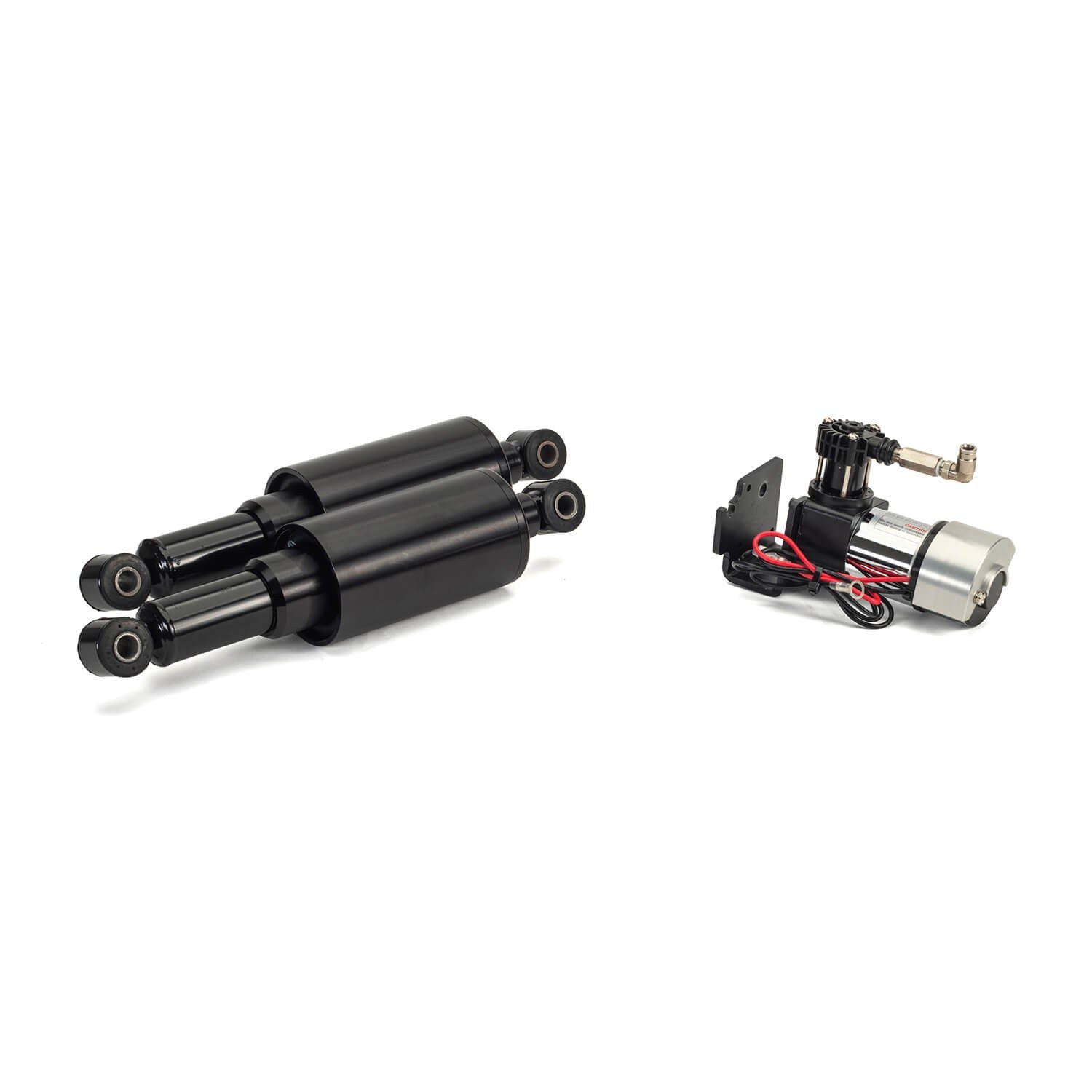

- 2 black shock absorbers w/multi-ply Goodyear air spring sleeves

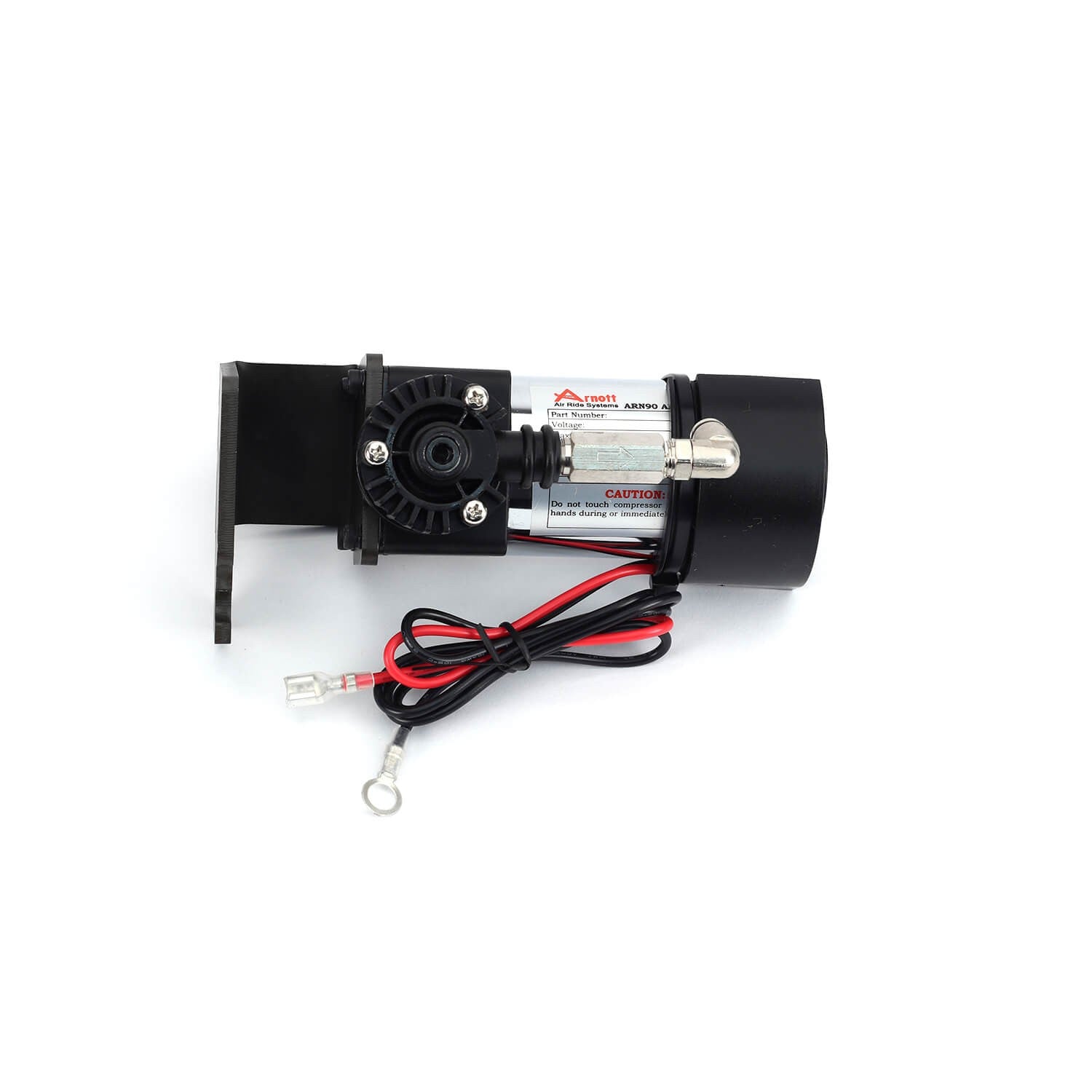

- ViAIR high output compressor w/application-specific bracket
- Micro-toggle inflation switch

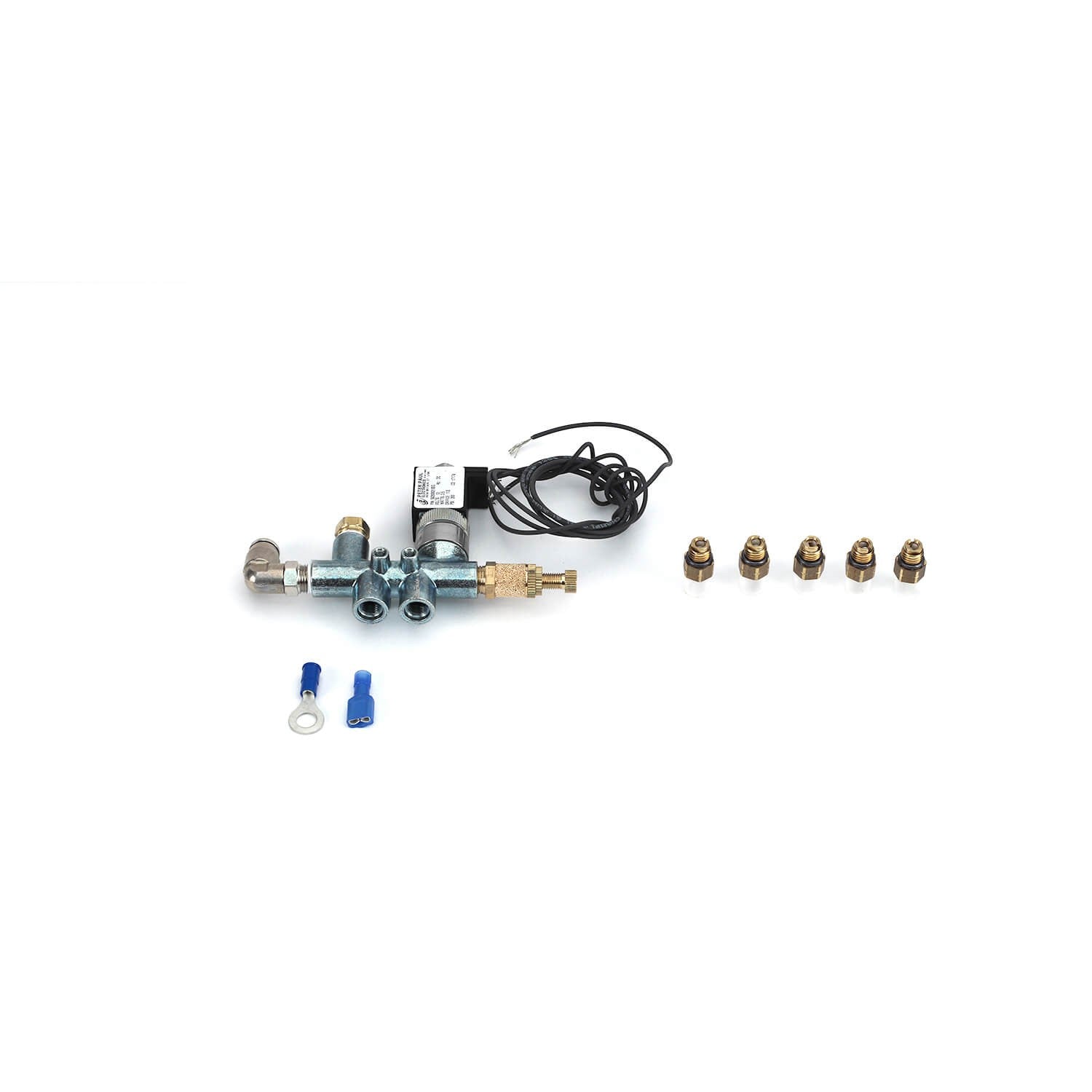

- Air distribution valve w/air speed control muffler
- VOSS air line fittings

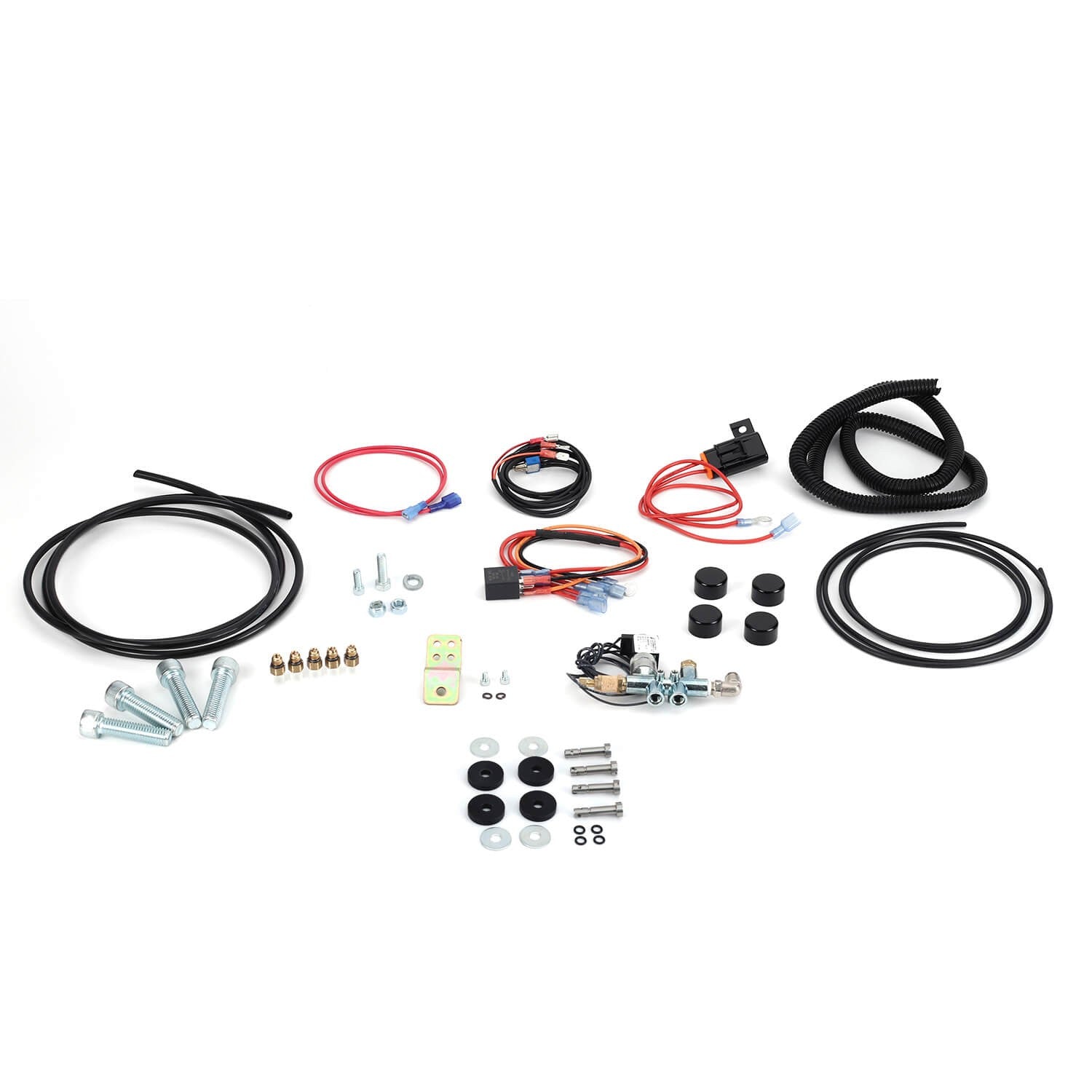

- Fused wiring harness & relay assembly
- All necessary mounting hardware
- Black bolt covers
- Nylon air line tubing
- Protective nylon split loom
- Cable ties
- Detailed installation manual
The affordable Arnott® Smooth Ride Series adjustable motorcycle air suspension kit for custom baggers was designed for 2009-2024 Harley-Davidson® touring models with aftermarket stretched saddlebags. The Arnott Custom Bagger Kit's shocks provide an extra inch of shock travel so extended bags won't scrape while turning corners, yet provide that slammed look while parked.
At the core of this system are two custom-valved 14" nitrogen-charged monotube shock absorbers with an Internal Floating Piston (IFP) to separate the gas from the oil, which eliminates oil foaming and cavitation for a better ride. Using a patent-pending design, Arnott adds a rugged Goodyear® air spring to provide the flexibility of setting the height of your rear suspension based on your weight, size, road conditions, and riding preference, helping you to ensure safety through enhanced control and stability. The Arnott system provides a crisp, sporty, ride plus the luxury of inflating or deflating your rear shocks with an onboard compressor and toggle switch.
Arnott pairs your shocks with a small but powerful compressor, custom-designed mounting bracket, and air distribution valve block which includes a muffler to control how fast air is released. Each kit includes everything you need for a fast and flawless installation; user manual, fused wiring harness, and relay assembly, all necessary tubing, cable ties, fittings, bolt covers, protective aluminum covers, and mounting accessories. Each shock is custom-crafted and rigorously tested in Arnott's Florida manufacturing facility and is backed by Arnott's Limited Lifetime Warranty.
PLEASE NOTE: These shocks may allow the rear axle to come in contact with an exhaust that is routed in an OE configuration below the saddlebags. For maximum ride height benefits, it is recommended that you use an aftermarket side dump exhaust.
INSTALLATION RESOURCES
Installation Manual (w/Google Translate)
Arnott® offers a Limited Lifetime Warranty for North American customers on all Air Springs, new and remanufactured Strut and Shock Assemblies, Coil Spring Conversion Kits, Air Suspension Compressors and Valve Blocks. Orders from outside North America, including the European Union, come with a Limited Two-Year Warranty. Arnott’s warranty on dryers and accessories is 1-Year. Arnott’s warranty is nontransferable. If a part is defective, Arnott will either replace or repair that part, as long as it is within the warranty period and proof of purchase is provided. Arnott offers a 30-Day Warranty for parts used in commercial vehicles. Improper use or installation is not a manufacturer’s defect.
For complete Warranty details and limitations, please click here.
